19th Aug 2025
Sandcarving Large Glass Panels and Monuments with the CrystalBlast Elite X3 Extended
Meet the CrystalBlast Elite X3 Extended, one of the latest additions to our industry-leading CrystalBlast sandcarving equipment. Purpose-built for shops that need to handle both small parts and oversized panels, the Elite X3 Extended brings together extended part capacity, true ergonomics, and our patented CleanFlo Technology so you can carve cleaner, faster, and with more flexibility than ever.

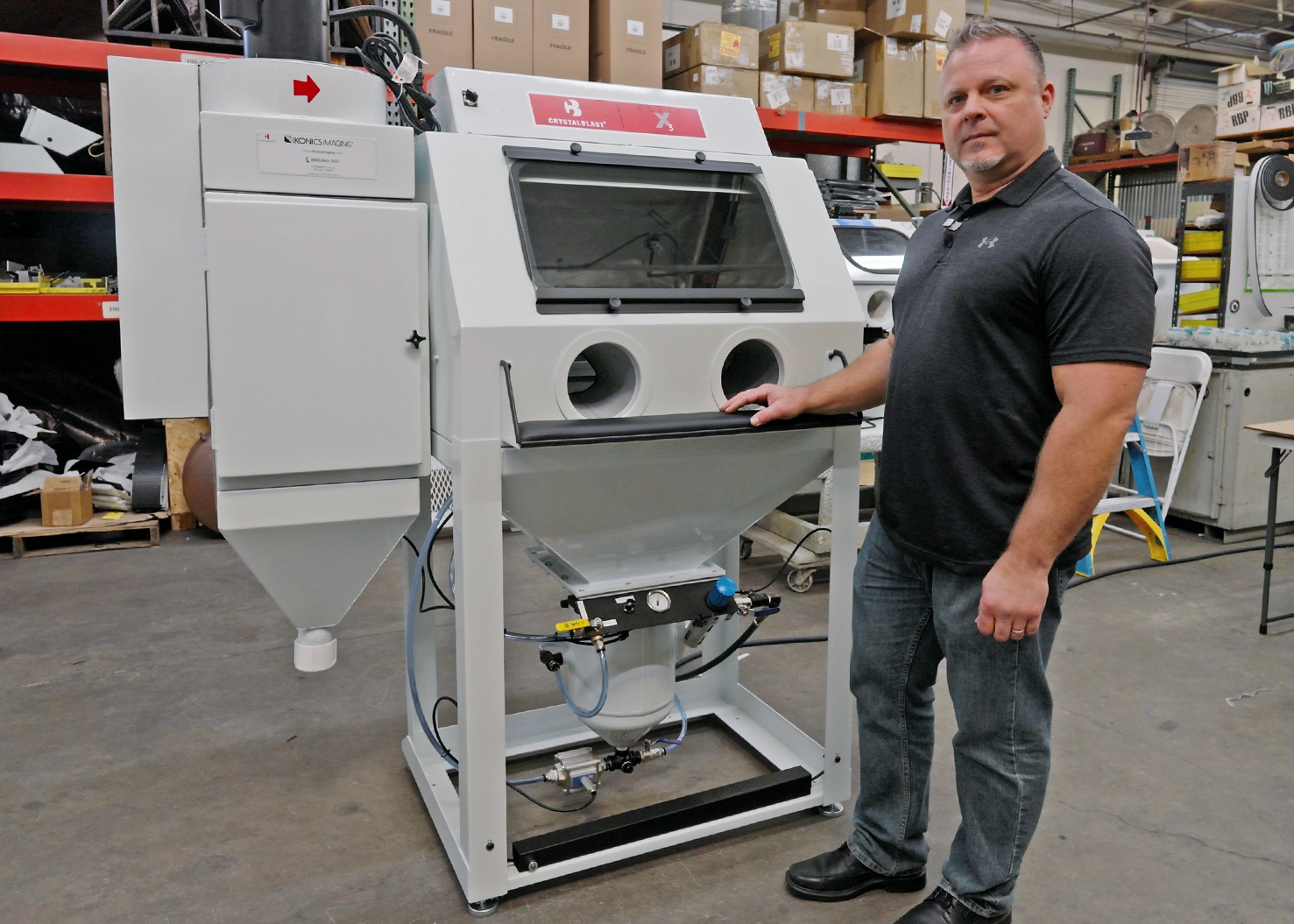

“With the back opening panel and adjustable support, one person can sandblast large pieces of glass all inside a clean, enclosed cabinet.” – Peter Norman, Director of Sales, IKONICS Imaging
Engineered from customer feedback and proven CrystalBlast design, the Elite X3 Extended lets you say “yes” to jobs that once felt out of reach, like full-size doors, donor walls, large signage, and architectural panels, without sacrificing a compact footprint.
WATCH VIDEO: CrystalBlast Elite X3 Extended Cabinet Overview
Key Features of the CrystalBlast Elite X3 Extended
The CrystalBlast Elite X3 Extended Cabinet offers a removable rear panel and large rear processing port which allows a single operator to slide in full-size doors, windows, and signage panels to blast safely inside the cabinet, while the height-adjustable, side-to-side glide tray supports and positions every piece. Paired with CleanFlo® dust management and true ergonomic controls, it turns oversized opportunities into everyday jobs cleanly, efficiently, and with minimal fatigue.
1. Removable Rear Part Processing Panel

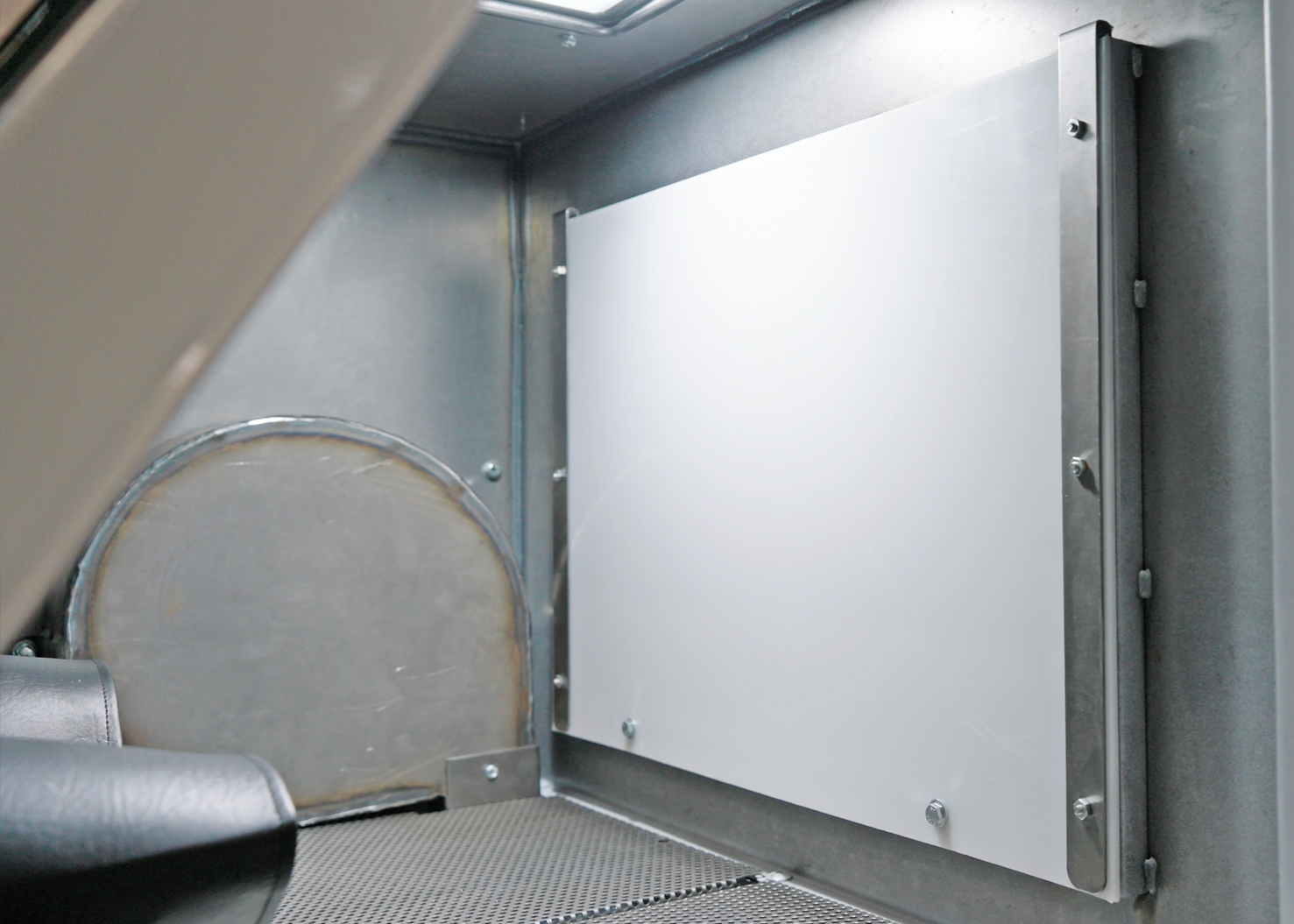

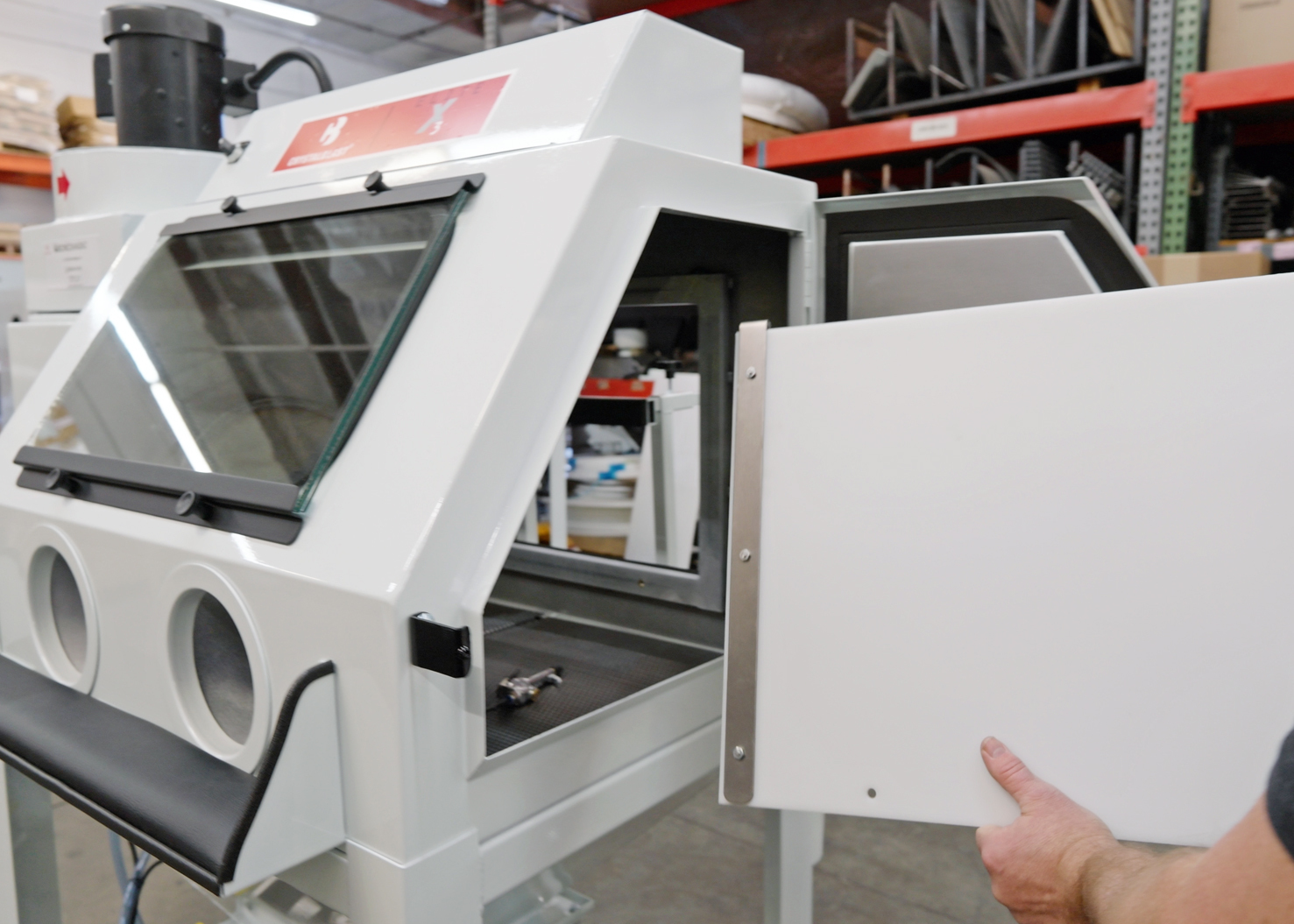

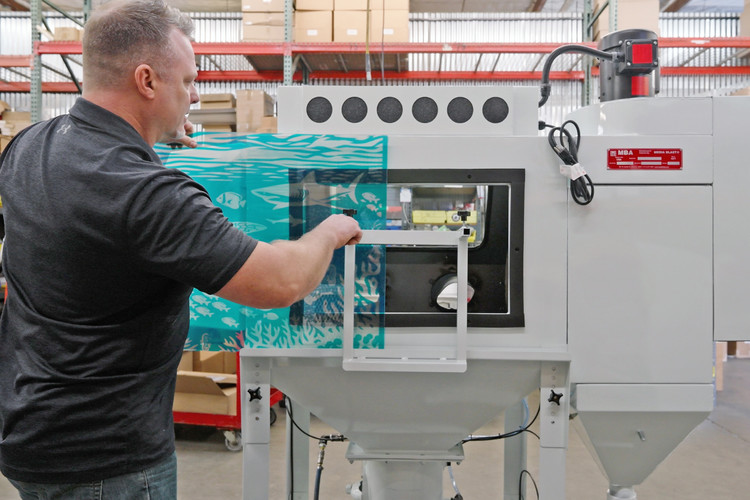

The star of the Elite X3 Extended is its removable rear part processing panel with a large rear port (23" W x 14.5" H). Unlatch the quick-release knobs, remove the inside poly cover, and slide large substrates, like shower doors, windows, and signage panels, straight through the back of the cabinet. A height-adjustable, side-to-side glide tray supports and positions the work so you can blast section by section with total control, all while keeping dust and abrasive contained.
2. Versatility Across Industries
Whether you’re producing intricate awards, donor walls, signage panels, or architectural glass, the CrystalBlast Elite X3 Extended delivers exceptional performance. Its removable rear panel and large rear processing port (23" x 14.5"), paired with the height-adjustable, side-to-side glide tray, let you slide in full-size doors and windows or batch multiple small parts, ideal for both custom one-offs and high-volume runs.
3. True Ergonomics for Seated or Standing Work

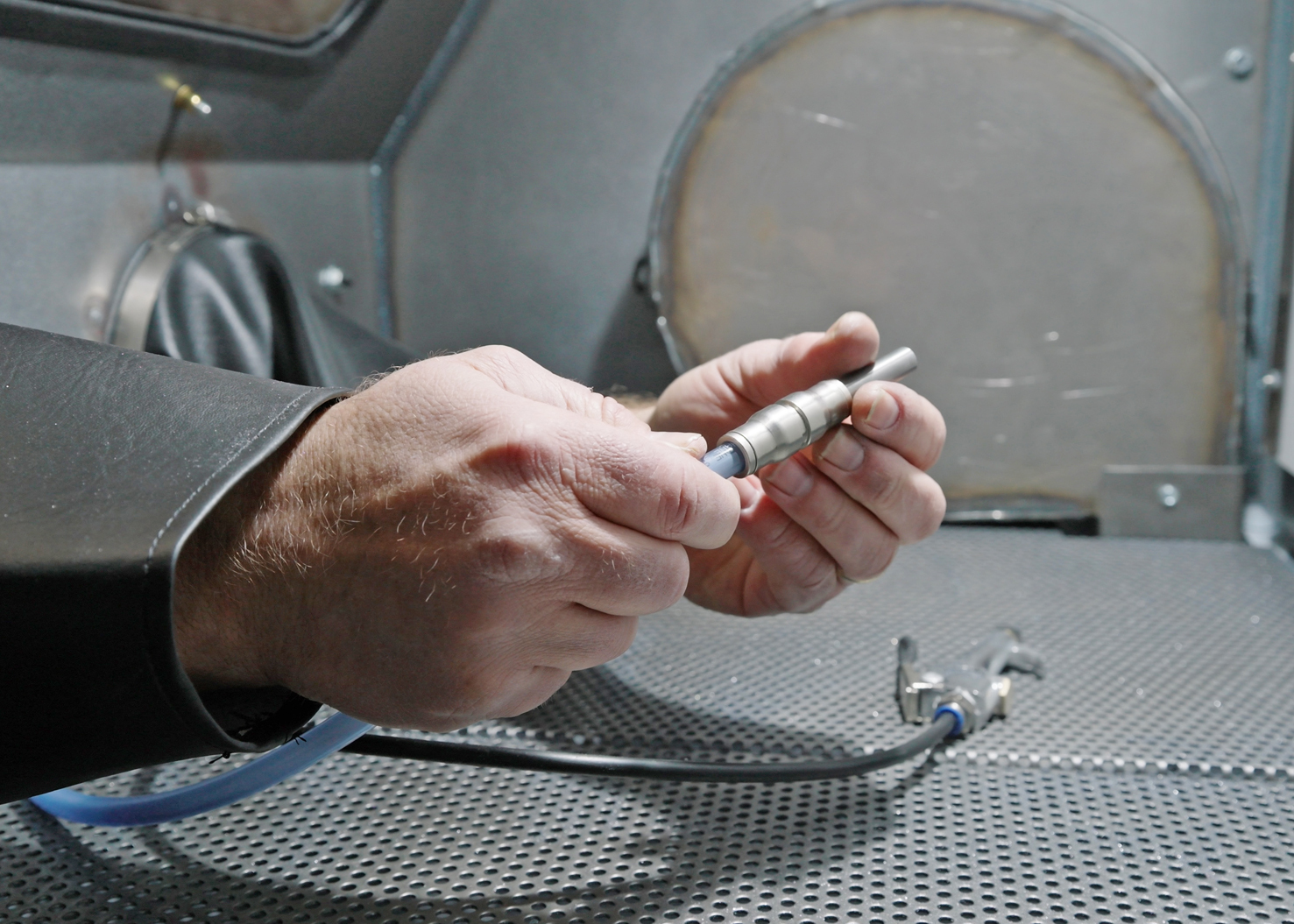

From micro work to massive panels, operators stay comfortable and in control. The Elite X3 Extended features seated or standing operation, an adjustable full foot treadle, eye-level controls, a micro-sized ergonomic abrasive whip hose to reduce fatigue, a fully padded armrest, and a large view window with bright LED lighting.
4. Patented CleanFlo® Technology
Keep visibility high and housekeeping low. CleanFlo combines a 700 CFM exhaust blower with a 110 sq. ft. certified filter cartridge for powerful reverse suction and dust control. A pneumatic vibration cleaning cycle and enclosed dust release make filter maintenance quick and clean, ideal for busy production environments.
5. Productivity Details That Matter
Speed through setups and keep grit where it belongs. The Elite X3 Extended includes an inside air blow-off gun, a quick-disconnect nozzle, toolless hose replacement, one-valve pressurization/depressurization, and a Lexair high-pressure, long-wear valve. Construction is all business too: a 100% welded cabinet with an inside welded tube support frame and two-component urethane paint for long life.
Who Is the CrystalBlast Elite Extended For
If your work ranges from boutique gifts to architectural glass, the CrystalBlast Elite X3 Extended gives you big-job capacity without a big footprint.
- Awards & Personalization: Donor walls, oversized plaques, layered glass features.
- Architectural & Design: Doors, windows, room dividers, art panels.
- Monument & Memorial: Larger stones and templates with clean containment.
- Sign Shops & OEMs: Full-size signage panels without blasting in the open.
Why Choose the Elite X3 Extended?
The Elite X3 Extended delivers what growing shops need most: the ability to take on larger work without expanding your footprint. With a removable rear panel, ergonomic controls, and CleanFlo dust management, you can carve everything from small substrates to full-size doors and windows.
Ready to expand your capabilities? Explore our full line of CrystalBlast sandcarvers, learn more about CleanFlo Technology, or contact IKONICS Imaging to configure the right setup for your shop.
